Bluetooth OBDII OBD2 Diagnostic Scanner - Torque Compatible

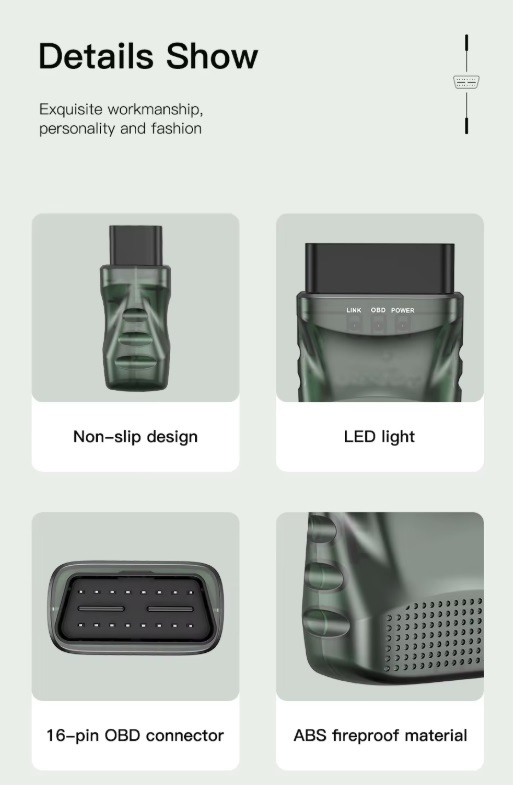

SKU: LOC-PABLO - VGATE iCARELM327 compatible Bluetooth OBDII OBD2 Diagnostic Scanner
ELM 327 compatible Scantool Check Engine Light Car Code Reader
Software included on a disk, but also download is possible on Google Play
Features:
New bluetooth power of ELM327 is the newly developed wireless scan tool. It supports all OBD-II protocols Works with all OBD-II compliant vehicles:
* Wireless (Bluetooth)
* Support Palm, PDA, Windows PC, Windows Smartphone
* Supports ISO 9141, KWP2000
* Supports SAE J1850
* Supports CAN bus

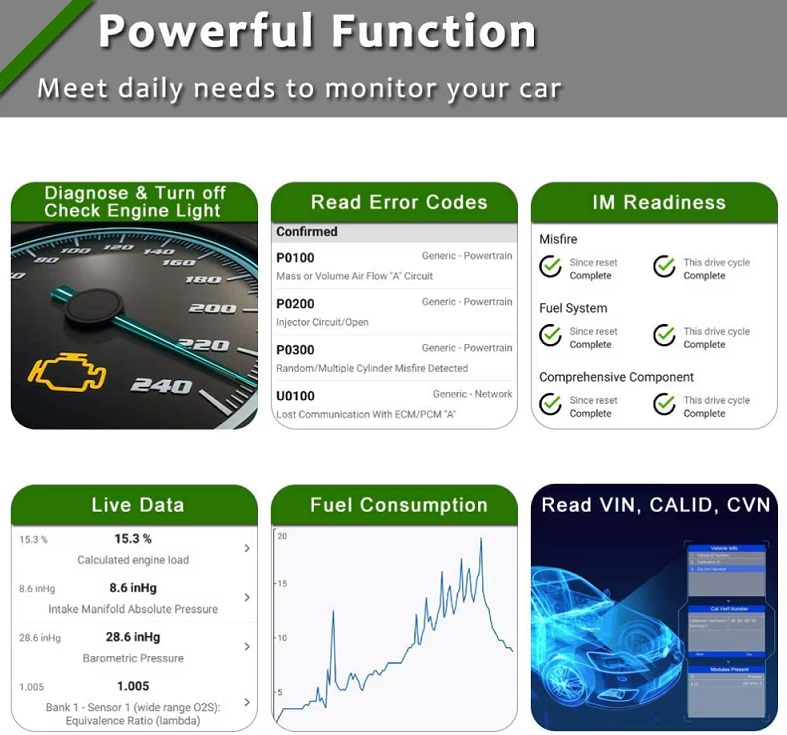

Functions:
* Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
* Clear trouble codes and turn off the MIL ("Check Engine" light)
* Display current sensor data, including:
* Engine RPM
* Calculated Load Value
* Coolant Temperature
* Fuel System Status
* Vehicle Speed
* Short Term Fuel Trim
* Long Term Fuel Trim
* Intake Manifold Pressure
* Timing Advance
* Intake Air Temperature
* Air Flow Rate
* Absolute Throttle Position
* Oxygen sensor voltages/associated short term fuel trims
* Fuel System status
* Fuel Pressure
* Many others...
Graphic View: Show data in both text and graphic form, get access to the Freeze Frame snapshot of sensor data * Vehicle Information: show basic information like VIN, CALID, CVN, Engine Serial Number
OBDII Protocols Supported: SAE J1850 PWM (41.6Kbaud)
SAE J1850 VPW (10.4Kbaud) ISO9141-2(5 baud init, 10.4Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4Kbaud)
ISO15765-4 CAN (11bit ID,500 Kbaud)
ISO15765-4 CAN (29bit ID,500 Kbaud)
ISO15765-4 CAN (11bit ID,250 Kbaud)
ISO15765-4 CAN (29bit ID,250 Kbaud)

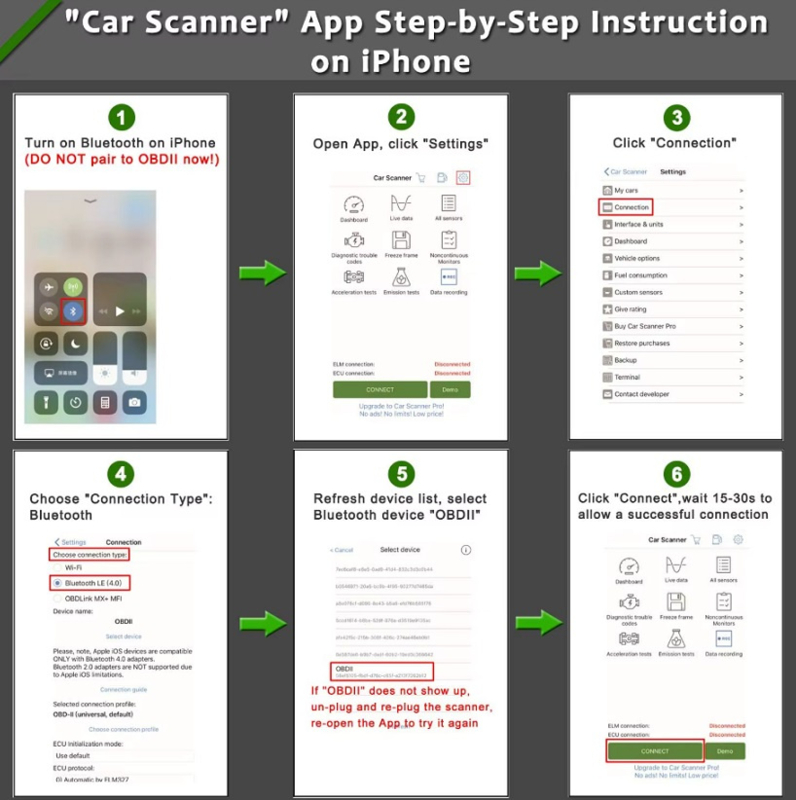

Viecar software:
1.Android password: 1234 or a123456
2.IOS don't need password
3.PC:WWW.ELM327.COM
